5747840-6
Manufacturer:
TE Connectivity
Mfr.Part #:
5747840-6
Datasheet:
Description:

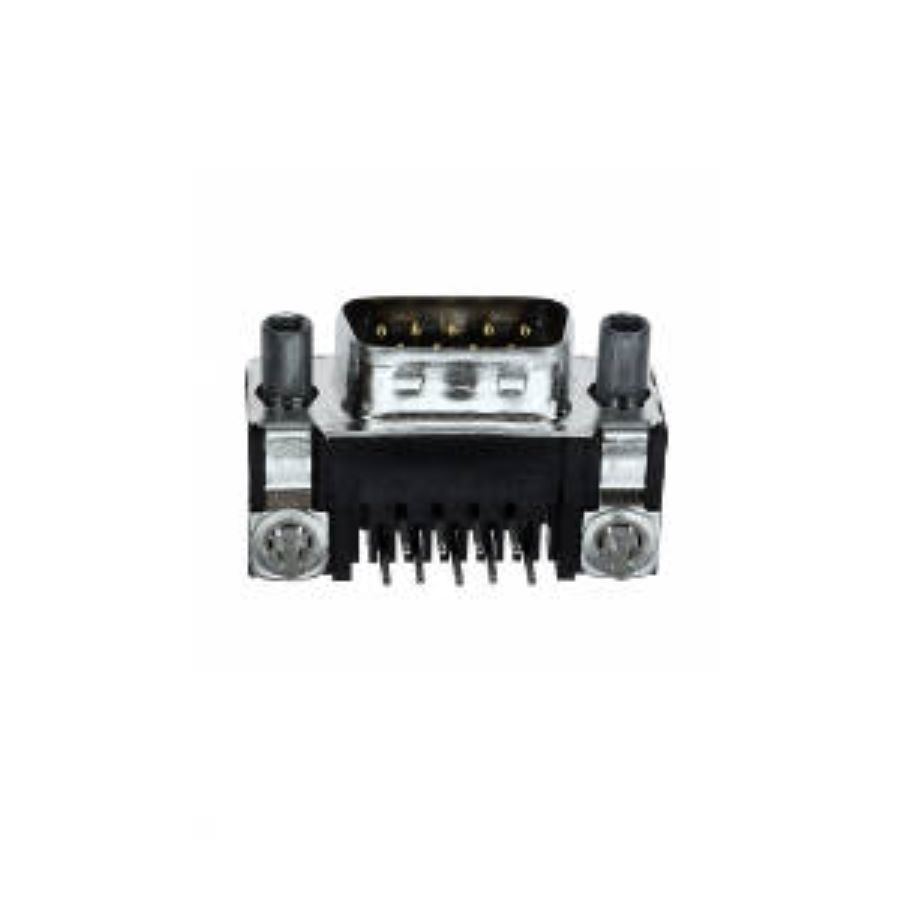

D-Sub Connectors Through Hole Plug Number of Positions:9 Solder Male
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 9 |
| Height | 12.93 mm |
| Material | Steel |
| Packaging | Tray |
| Voltage Rating | 125 V |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Brass |
| Type | Plug |
| Current Rating | 6 A |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 9 |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Row Spacing | 2.8448 mm |
| Housing Material | Thermoplastic |
| Circuit Application | Signal |
| Housing Color | Black |
| Contact Shape | Round |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Mating Connector Lock | With |
Stock: 1898
Distributors
pcbx
pcbxUnit Price$1.66455
Ext.Price$1.66455
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.66455 | $1.66455 |
| 10 | $1.54571 | $15.45710 |
| 25 | $1.48929 | $37.23225 |
| 50 | $1.37644 | $68.82200 |
| 100 | $1.23281 | $123.28100 |
| 300 | $1.20957 | $362.87100 |
| 500 | $1.18677 | $593.38500 |
| 1000 | $1.16441 | $1164.41000 |
